1200-EC

Focused Beam UV Flood Lamp Systems


Available Globally (Except Europe)

The Dymax 1200 Series focused beam UV curing flood lamps use high-intensity UV/Visible light for the rapid curing of UV adhesives, UV coatings, and UV inks. A Dymax 1200-EC UV flood lamp delivers broad-spectrum light concentrated primarily in the UV-A range (320-390 nm wavelength) to achieve maximum cure depths and tack-free cures, typically in 10-30 seconds. Dymax 1200-EC UV flood lamps are specifically designed for applications requiring high-intensity UV light concentrated in a narrow 1 in x 6 in beam.

1200-EC focused beam UV curing lamps provide low-cost cures for bonded or coated areas larger than 1/2 inch and can be used for UV curing trays of small parts or parts arranged in a linear configuration. They are used for a variety of UV bonding, UV potting, UV sealing, UV tacking, and UV encapsulating applications within the industrial, automotive, electronic, medical device, and optical industries.

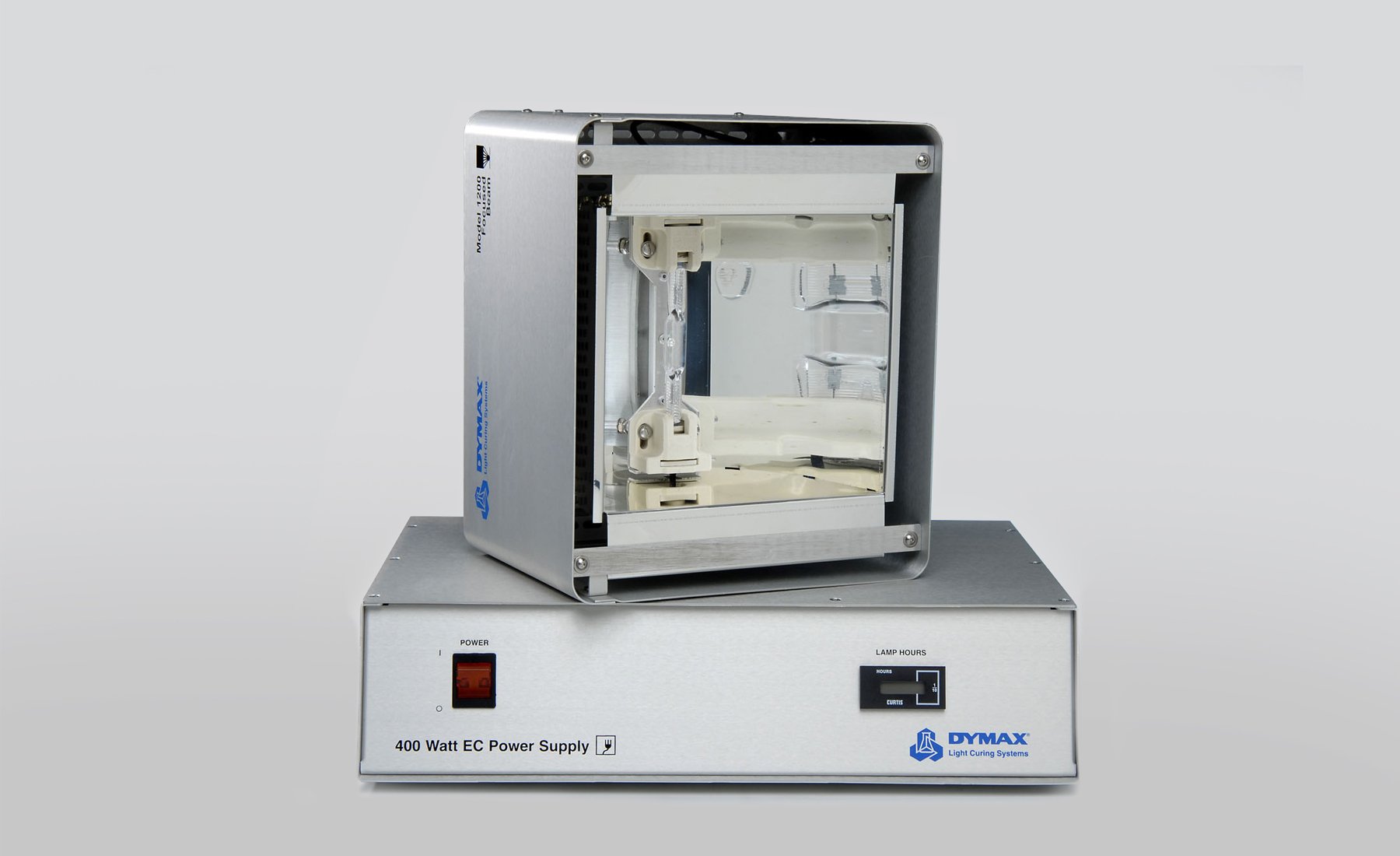

The 1200-EC UV curing flood lamp consists of a power supply, reflector housing, and 400 Watt metal halide UV curing bulb. Accessories can be ordered with or retrofitted to the UV curing lamp after purchase, including shutter assemblies, UV shields, and UV flood-lamp stands. Complete UV flood systems are also available.  UV curing flood lamps can be conveyor mounted or used as stand-alone, bench-top systems.

Take advantage of the opportunity to evaluate our light-curing systems for two weeks free of charge through our Try-and-Buy program.

Features

Features

  • Bulbs come with a 2,000 hour warranty
  • 1 in x 6 in focused beam of high-intensity UV light
  • Tack-free cure in 10-30 seconds
  • Rugged brushed-aluminum construction
  • Ideal for UV curing trays of small parts
  • Lamps can be conveyor mounted or used as stand-alone, bench-top systems

Resources

Resources

System Specifications

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch
Property Specifications
Output power 400 Watts
UV light source Unfiltered full spectrum UV focused beam light
Typical intensity in the UVA range (320-390 nm)* 350 mW/cm²
Dimensions of illuminated area 1 in x 6 in [2.5 cm x 15.2 cm]
EC input power requirements Universal 90-265 VAC (grounded), 47-63 Hz
Power supply weight 12.25 lbs. [5.6 kg]
Power supply dimensions (approximate L x W x H) 12 in x 16 in x 4.25 in [30.5 cm x 40.6 cm x 10.8 cm]

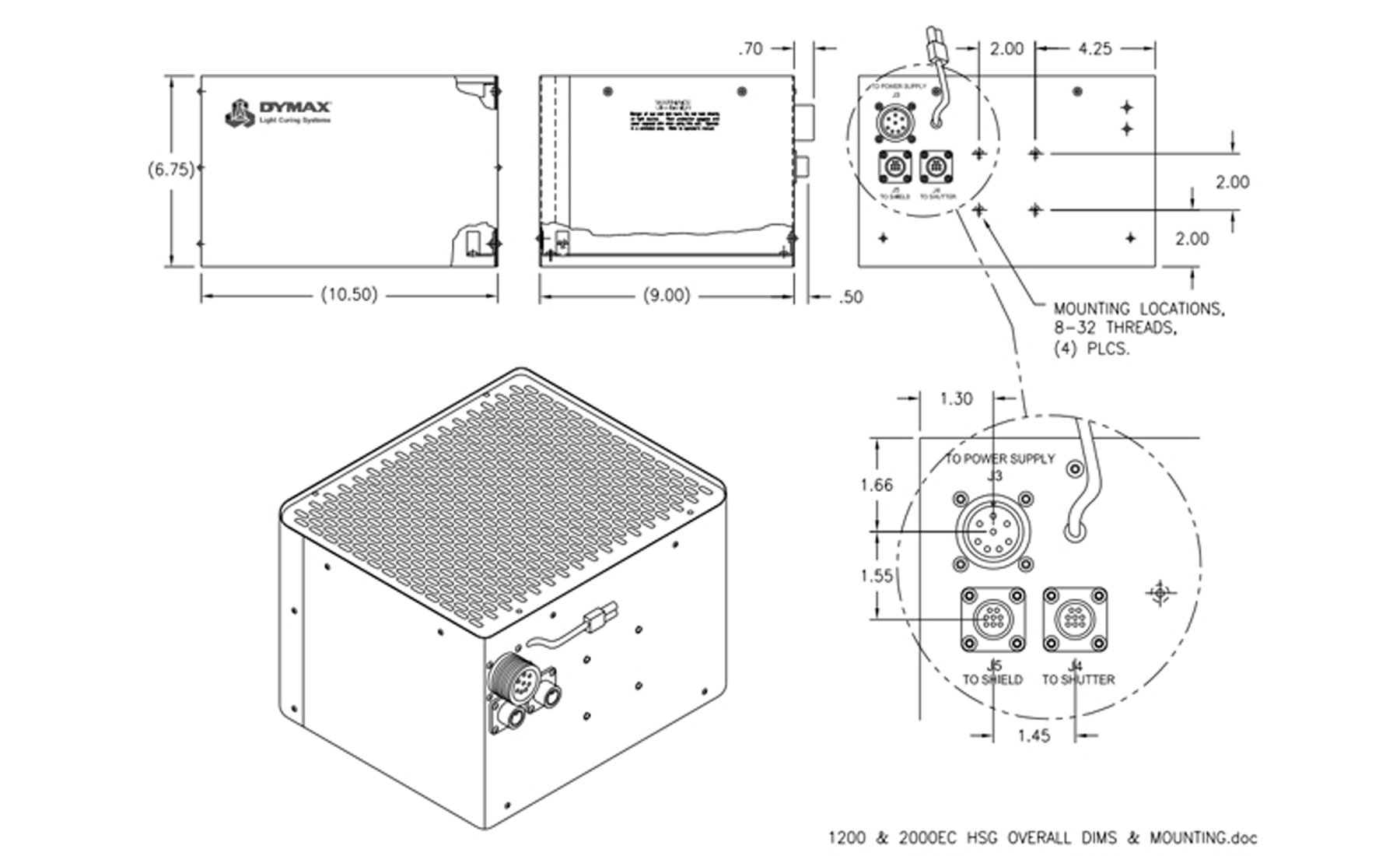

Housing dimensions (approximate L x W x H) 9 in x 10.5 in x 7.5 in [22.9 cm x 26.7 cm x 19.1 cm]
Housing weight 3.4 lbs [1.5 kg]
Operating Environment 10-40°C
0-80% non-condensing
* Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer, measured 4.5″ from the bottom edge of the reflector housing.

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch

Part Numbers

Build a complete solution or find replacement parts for your project

Limited quantities, please submit RFQ for pricing and availability.

39920

1200-EC Modular with Light Shield

Global Except Europe

39930

1200-EC Modular with Mounting Stand

Global Except Europe

35572

Manual Shutter for EC and ECE Floods

Most cost-effective shutter system.

Europe Only (CE Marked)

37863 (99401664)

 ZIP™ Shutter for EC Floods

Timed and manual modes. Foot pedal or PLC controlled.



Global Except Europe

41175

EC Flood Light Shield

360shielding with lifting door and sliding curing shelf.

Compatible with Dymax Shutters (Part # 37863, #35572).

Global Except Europe

C- 38290

Clearance - 1200 & 2000 Mounting Stand Kit. Compatible with 1200-EC, 1200-PC, 2000-EC, 2000-PC, and ECE 2000 UV Flood Lamps.

Global Except Europe

39560

ACCU-CAL™ 50 for Spot and Flood Lamps and Conveyors

Includes storage/carrying case

Global (CE Marked)

39561

ACCU-CAL™ 50 for Flood Lamps and Conveyors

Includes storage/carrying case

Global (CE Marked)
