Dispensing Equipment
Dymax manual and automated fluid dispense systems and spray valves are easily integrated into existing manufacturing processes for easy application of coatings, lubricants, or masking resins.

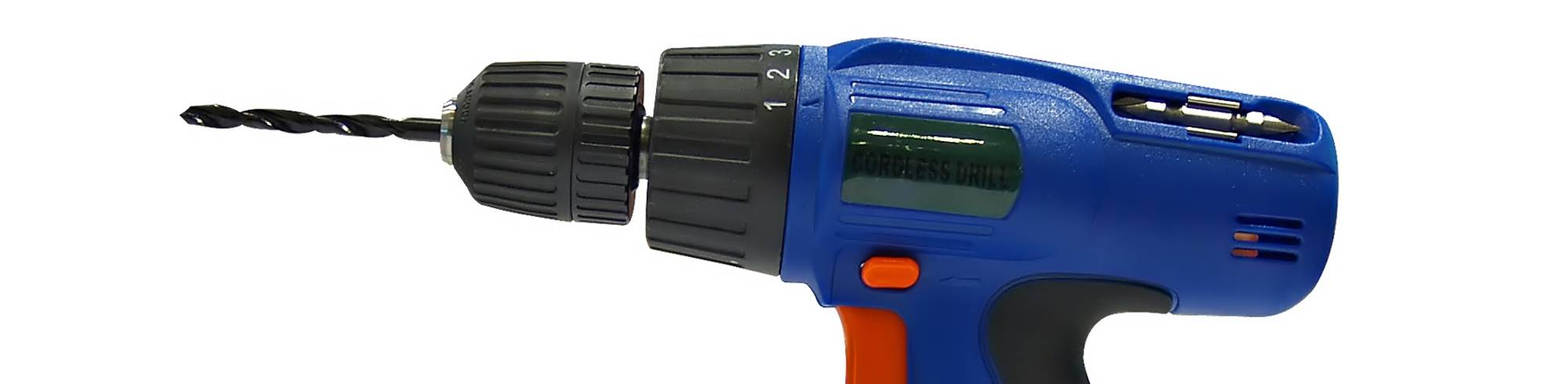

Handheld Power Tools
Light-Cure Materials For Handheld Power Tool Applications
Dymax manufactures various light-curable materials used in the assembly of handheld power tools. Dymax adhesives, coatings, gaskets, and masking materials increase throughput, decrease work in progress, increase efficiency and deliver cost savings for the manufacturer.
Our light-cure materials (LCMs) bond glass, plastic, and metal substrates quickly when exposed to LED/UV/Visible light energy to join, protect, and seal components. Coatings protect printed circuit boards and electronics from environmental damage, while maskants protect surfaces from finishing processes such as acid stripping. Form-in-place gaskets fill and seal channels, while adhesives cure in seconds to bond two substrates together.
Typical applications:
• Power tools
• Saws and other cutting tools
• Measuring devices
Features
- Cure upon exposure to LED/UV/Visible light
- Secondary cure options in some materials
- Fluorescing for confirmation of placement (some products)
- Work with a variety of substrates
- Halogen free
- No solvents added
Product Number
Product Description
Regional Availability
3094-T-REV-A
Low-stress, low shrinkage plastic bonding adhesive cures with high-intensity UV/Visible light in seconds for rapid bonding and sealing of a variety of plastics. The adhesive is thixotropic and jet friendly for easy dispensing.
9483
High-performance conformal coating that cures tack-free upon exposure to UV/Visible light and then over time with ambient moisture. This product fluoresces bright blue, exhibits excellent corrosion, chemical resistance, and thermal cycling properties. The coating is easily applied from 2-8 mils (0.002 in – 0.008 in) thick to meet the requirements of most automotive PCB designs. UL 94 Flammability V-0 rating.
9037-F
Resilient chip encapsulant and wire bond adhesive designed for applications where a thixotropic, high-viscosity encapsulant or a damming material is required. This product cures with UV/Visible light and features a secondary heat cure to address shadow areas. This material has great flexibility, provides high moisture and thermal resistance, and fluoresces blue.
Product Number
Product Description
Regional Availability
501-E-REV-A
501-E-REV-A Activator, when pre-applied to metallic, plated, ceramic, or glass substrates rapidly cures 600 series and 800 series structural adhesives and thermal interface materials in gaps from less than 1 mil to 20 mils.
GA-142
Flexible FIP/CIP gasketing resin for applications that require soft, tacky, flexible, low compression set. This silicone-free product cures upon exposure to UV/Visible light.
429
Optically clear structural adhesive for fast assembly of metal to glass, potting critical components, and large-area bonding. This high-impact product is resistant to yellowing and thermal shock.
3099
Fast-curing adhesive designed to form strong bonds to PMMA (Acrylic), polycarbonate, glass, and other plastic substrates. This product's clarity and low viscosity produce clear, bubble-free bond lines.
846-GEL
High-performance structural bonding adhesive ideal for bonding dissimilar substrates where maximum tensile shear strength is required. This product cures using activator.
GA-103
Form-in-place gasket sealant has excellent moisture- and chemical resistance for high-temperature sealing applications and underwater enclosures that require a low compression set. This silicone-free gasket has a self-leveling viscosity and cures with UV/Visible light in seconds.
GA-120
Self-leveling FIP gasket with good deflection is formulated for applications such as speaker assembly and automotive enclosures, which require a soft, tacky, flexible gasket.
GA-142-F
Soft, tacky, flexible FIP/CIP gasketing resin with good adhesion to plastic, metal, and ceramic surfaces. This product cures upon exposure to UV/Visible light and fluoresces blue for easy visual inspection.
9-911-REV-B
UV/Visible light-curable adhesive for rapid tacking of repair wires on PCBs. This product has high tensile strength, excellent adhesion, and faster UV fixture time. This adhesive features a secondary heat cure for complete cures in shadow areas.
984-LVUF
Low viscosity conformal coating formulated with no solvents added for rapid room-temperature cure when exposed to UV light. This coating has a secondary heat-cure and ultra-high fluorescence. UL 94 Flammability V-1 rating.
9001-E-V3.1
Light and heat-curable encapsulant & potting resin for electronic assembly and circuit boards where enhanced moisture and thermal cycling, and abrasion resistance are required. This material provides optimal coverage over difficult circuit geometries and minimizes stress on delicate wire bonds.
6-621
Metal bonding adhesive curable with UV/Visible light, heat, or pre-applied activator. Visible light can penetrate through many UV-blocked and colored plastics and glasses. Applications include coil winding, potting, as well as metal-to-glass bonding.
Need help, use the product finder
Use our formulated product finder to help you find the right material. Interested in learning more or have questions? Contact Us, we want to hear from you.
